Environment Variables

Use typed project environment variables in Flow code and Agent prompts.

2 min read

Environment Variables store project-level configuration that Flows can read at runtime from code and Agent prompts. Open Advanced → Environment Variables to review each variable's name, type, display value, and last modification.

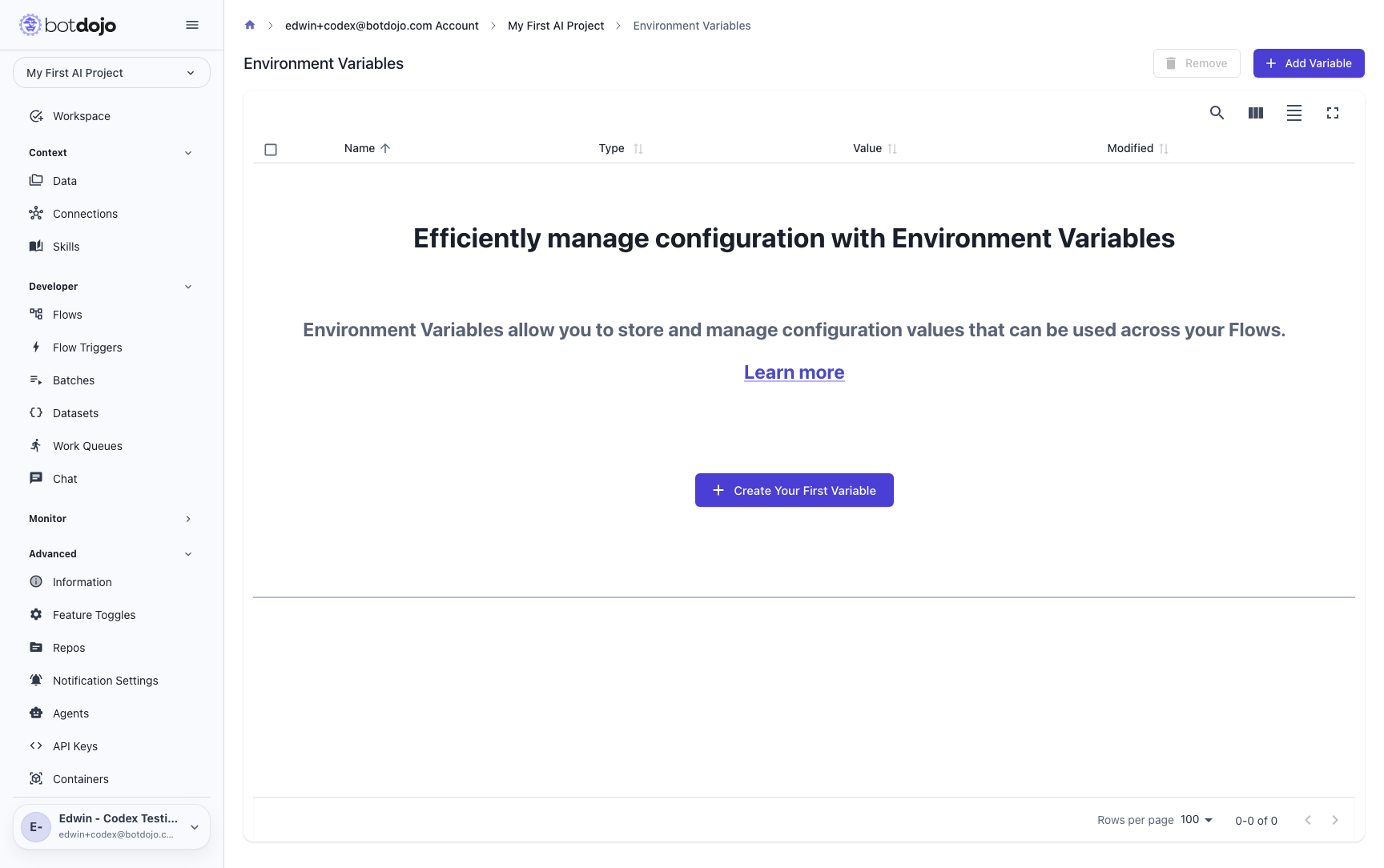

The light-mode Environment Variables page in its empty state

Select Add Variable or Create Your First Variable.

Variable settings

Setting	What it does
Name	Sets the runtime identifier. It must start with a letter and contain only letters, numbers, and underscores. Names must be unique in the project.
Type: String	Stores text.
Type: Number	Stores a numeric value.
Type: Boolean	Stores `true` or `false`.
Type: Secret	Stores sensitive text whose normal list display is masked. Use it for credentials and tokens.
Type: Data	Stores a structured object.
Value	Supplies the value and is validated against the selected type.

Select a variable name to edit it. Archive in the editor or Remove from the list removes it from active use.

Use variables in a Flow

Every Flow in the project can read these variables at runtime. You do not need to add them to the Start node or connect them as Flow inputs.

In a Code node:

Turn on Allow Environment Variables in the node settings.
Read a variable by name with context.env:

const serviceUrl = await context.env("SERVICE_URL");
const apiKey = await context.env("VENDOR_API_KEY");

const response = await fetch(`${serviceUrl}/records`, {
  headers: {
    Authorization: `Bearer ${apiKey}`,
  },
});

Use variables in an Agent prompt

AI Agent prompts are Handlebars templates. Reference a non-secret project variable with {{env.VARIABLE_NAME}} in any system or user prompt message:

You support customers in {{env.SUPPORT_REGION}}.
Escalate requests with a score above {{env.ESCALATION_THRESHOLD}}.

BotDojo replaces each reference with the current project value before sending the prompt to the model. This makes String, Number, Boolean, and Data variables useful for shared instructions, feature flags, limits, and other configuration that should stay consistent across agents and Flows. Render an entire Data variable as JSON with the json helper:

Allowed support channels: {{json env.SUPPORT_CHANNELS}}

Secret variables are deliberately excluded from prompt templates and cannot be referenced with {{env.NAME}}. Keep credentials in variables with the Secret type and read them only from an enabled Code, Code Tool, or Code Interpreter node that needs them.

Changing a name, type, value, or removing a variable can break every Flow that references it. Search dependent Flows before making the change. A Secret reduces accidental display but remains sensitive; never copy it into prompts, logs, screenshots, or non-secret fields.
