Add and Connect the Agent

The AI Agent node combines a prompt and language model with optional memory and tools. Add it between the Start and End nodes.

Add the AI Agent

1. Select Add Node.
2. Expand Agents.
3. Drag the BotDojo provider onto the canvas. Each card in this category creates an AI Agent configured for that model provider.

⤢Expand

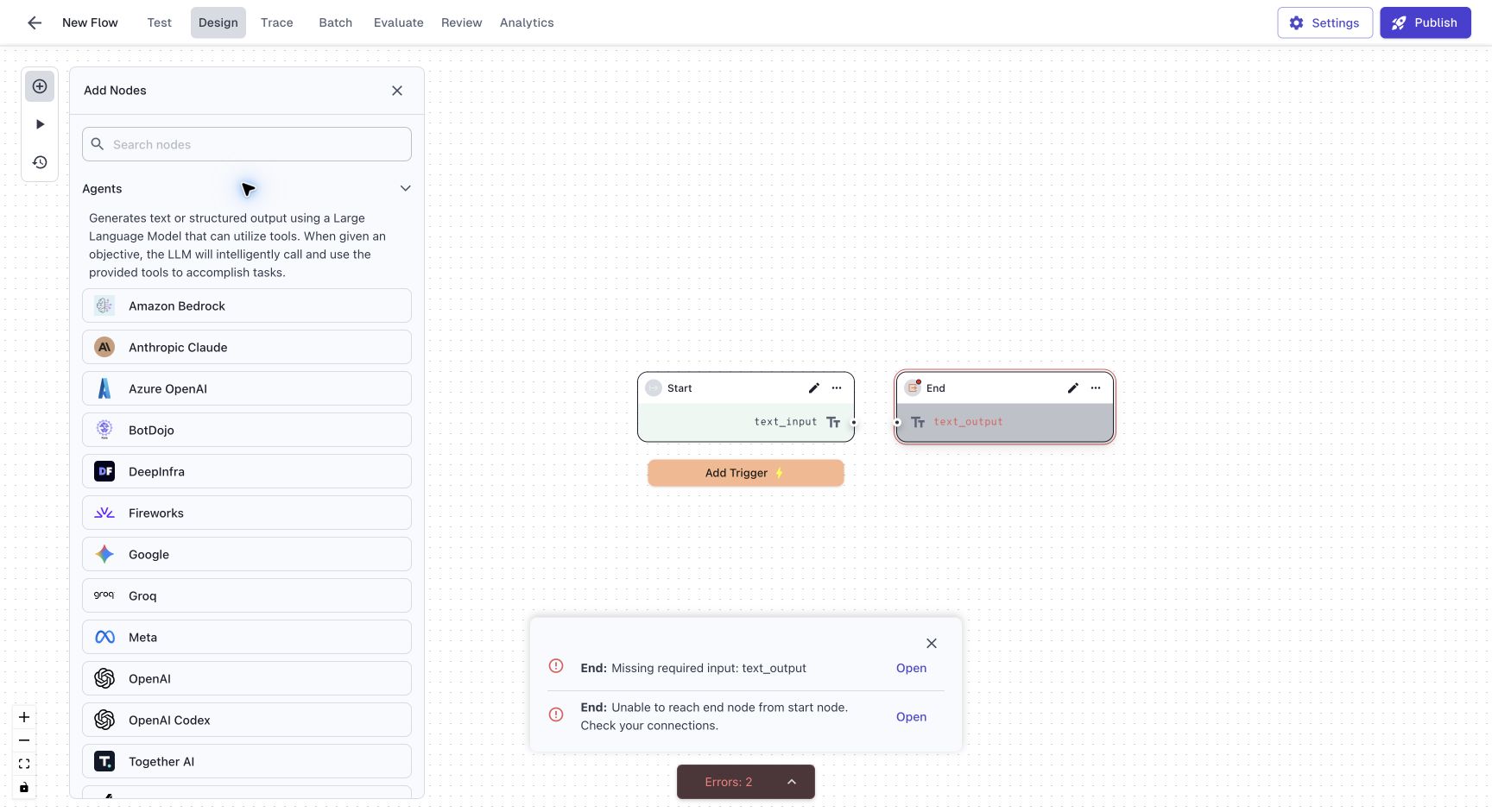

Screenshot previewThe Add Nodes panel open to model providers in the Agents category

×

The new node is labeled AI Agent. Its left side accepts the user's text, memory, and tools. Its right side returns the generated text.

⤢Expand

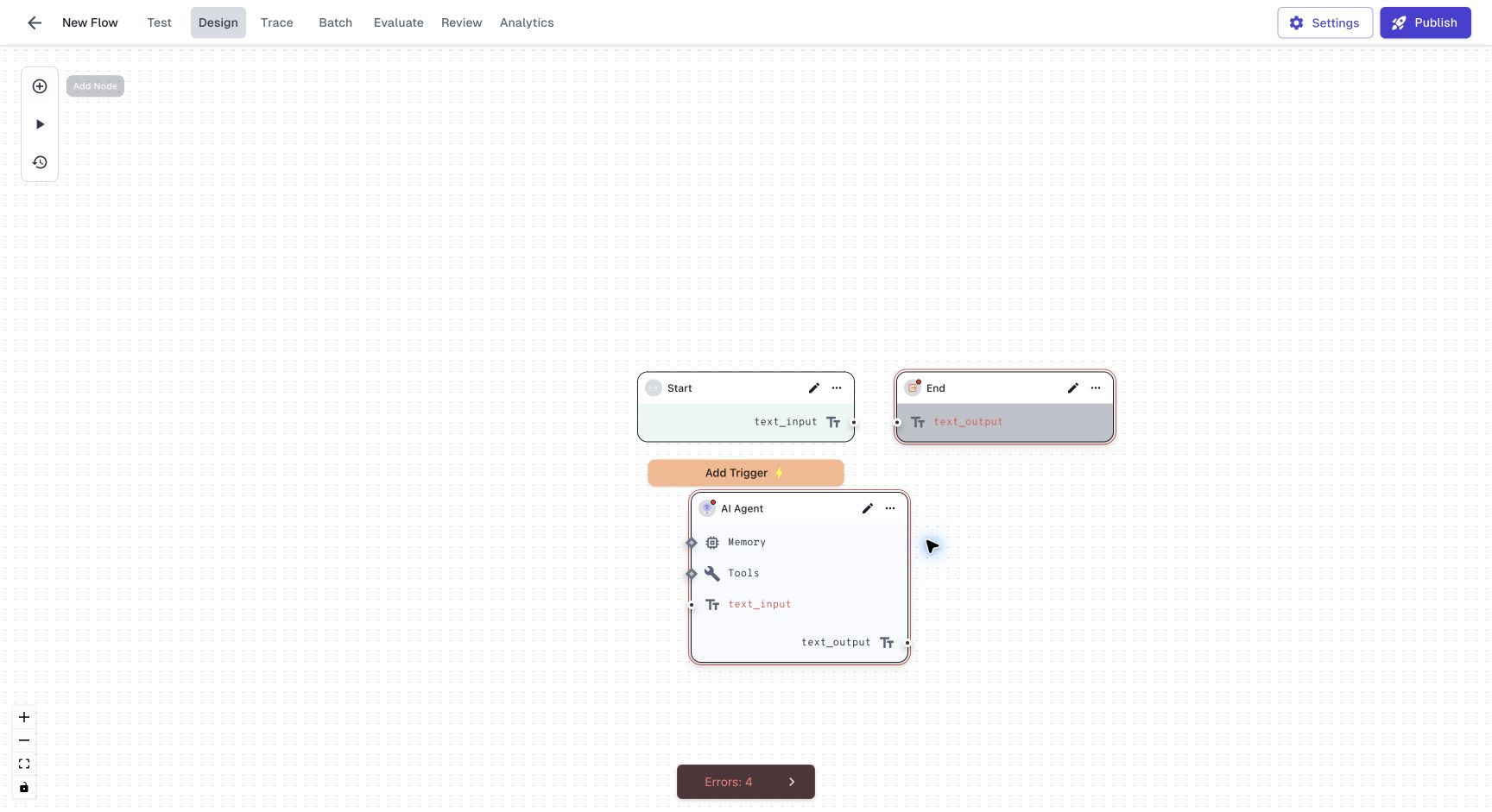

Screenshot previewAn AI Agent node newly added to the Flow canvas

×

Connect the Flow

Drag between the matching ports to create these connections:

1. Start text_input → AI Agent text_input
2. AI Agent text_output → End text_output

The completed shape below also shows the Tiered Memory node you will add in the next step.

⤢Expand

Screenshot previewStart and Tiered Memory connected to an AI Agent, with its response connected to End

×

Connections define how values move through the Flow. If a connection lands on the wrong port, select it and remove it, then drag the connection again.

Learn more about working in the Flow Designer.
